COMPONENTS

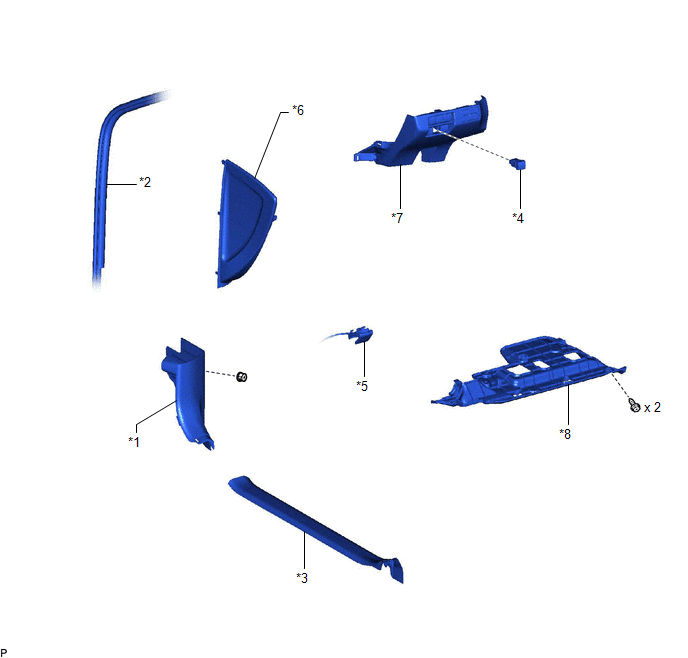

ILLUSTRATION

*1

COWL SIDE TRIM SUB-ASSEMBLY LH

*2

FRONT DOOR OPENING TRIM WEATHERSTRIP LH

*3

FRONT DOOR SCUFF PLATE LH

*4

FUEL LID OPENER SWITCH

*5

HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

*6

INSTRUMENT SIDE PANEL LH

*7

NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY

*8

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    Fuel Lid Opener Switch

    Inspection
