COMPONENTS

ILLUSTRATION

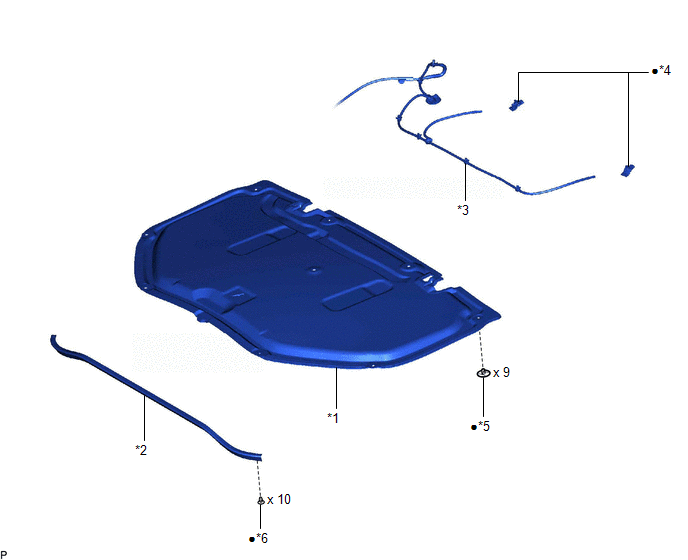

*1

HOOD INSULATOR

*2

HOOD TO RADIATOR SUPPORT SEAL

*3

WASHER HOSE ASSEMBLY

*4

WASHER NOZZLE SUB-ASSEMBLY

*5

HOOD INSULATOR CLIP

*6

HOOD TO RADIATOR SUPPORT SEAL CLIP

●

Non-reusable part

-

-

ILLUSTRATION

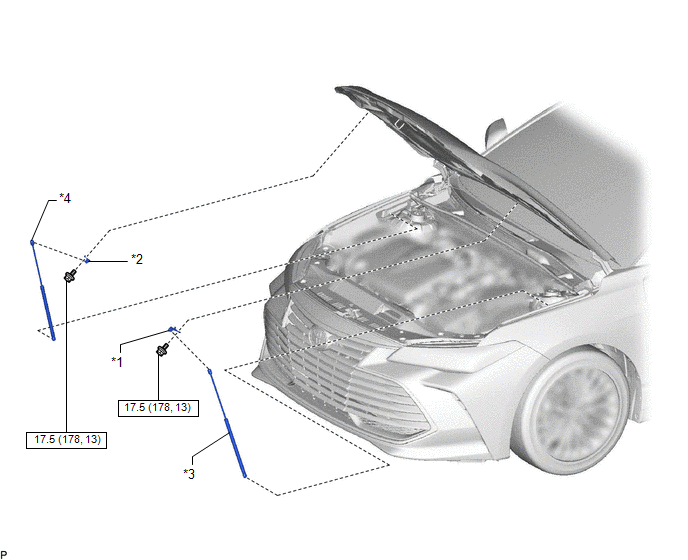

*1

HOOD STAY BRACKET LH

*2

HOOD STAY BRACKET RH

*3

HOOD SUPPORT ASSEMBLY LH

*4

HOOD SUPPORT ASSEMBLY RH

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
    Adjustment

    Disassembly
