REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during outer rear view mirror assembly with cover removal/installation are shown below. Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
HINT:
PROCEDURE 1. REMOVE FRONT DOOR ARMREST COVER SUB-ASSEMBLY Click here 2. REMOVE FRONT DOOR TRIM POCKET COVER Click here 3. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side) Click here 4. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side) Click here 5. REMOVE COURTESY LIGHT ASSEMBLY Click here 6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY Click here 7. REMOVE HOLE PLUG

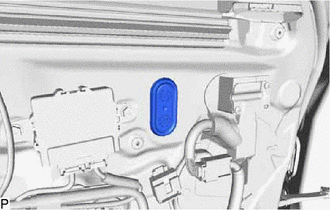

8. REMOVE OUTER MIRROR INSTALL HOLE COVER

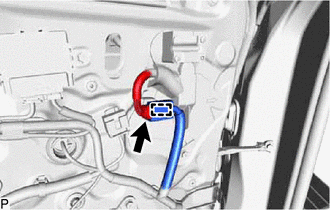

(b) Disengage the clamp.

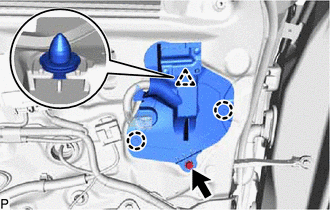

(d) Disengage the clip and 2 claws to remove the outer mirror install hole cover. 9. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER

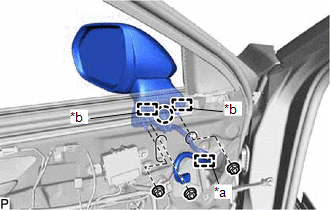

(b) Remove the 3 nuts. (c) Disengage the claw and 2 guides, and remove the outer rear view mirror assembly with cover. |
