Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Sliding Roof Switch Assembly

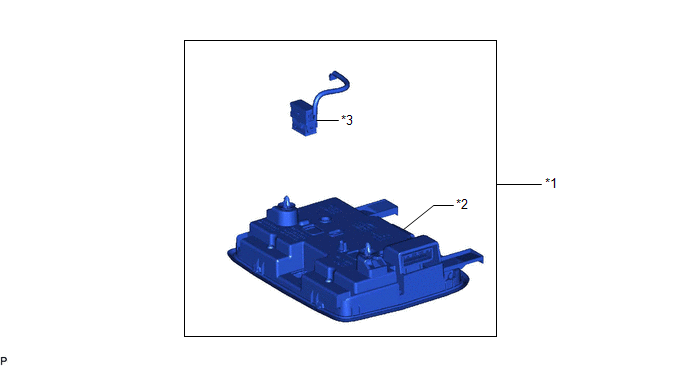

Components

COMPONENTS

ILLUSTRATION

*1

ROOF CONSOLE BOX ASSEMBLY

*2

ROOF CONSOLE BOX SUB-ASSEMBLY

*3

TELEPHONE MICROPHONE ASSEMBLY

-

-

Inspection

INSPECTION

PROCEDURE

1. INSPECT SLIDING ROOF SWITCH (ROOF CONSOLE BOX SUB-ASSEMBLY)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 - 15

UP switch pressed

Below 100 Ω

3 - 15

UP switch not pressed

1 kΩ or higher

18 - 15

DOWN switch pressed

Below 100 Ω

18 - 15

DOWN switch not pressed

1 kΩ or higher

5 - 15

OPEN switch pressed

Below 100 Ω

5 - 15

OPEN switch not pressed

1 kΩ or higher

4 - 15

CLOSE switch pressed

Below 100 Ω

4 - 15

CLOSE switch not pressed

1 kΩ or higher

If the result is not as specified, replace the sliding roof switch (roof console box sub-assembly).

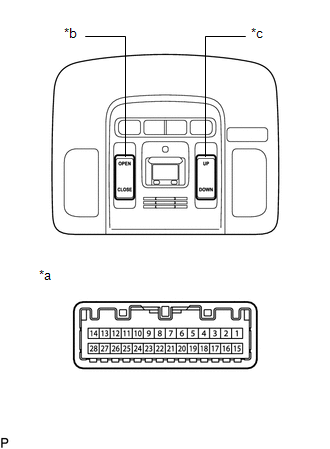

*a

Component without harness connected

(Sliding Roof Switch (Roof Console Box Sub-assembly))

*b

Sliding Roof Switch

*c

Tilt Switch

Installation

INSTALLATION

PROCEDURE

1. INSTALL ROOF CONSOLE BOX SUB-ASSEMBLY

2. INSTALL TELEPHONE MICROPHONE ASSEMBLY

Click here

3. INSTALL ROOF CONSOLE BOX ASSEMBLY

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE ROOF CONSOLE BOX ASSEMBLY

Click here

2. REMOVE TELEPHONE MICROPHONE ASSEMBLY

Click here

3. REMOVE ROOF CONSOLE BOX SUB-ASSEMBLY

    Removal

    Sliding Roof System(for Gasoline Model)
