REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during vehicle approaching speaker controller removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed
*: When performing learning using the Techstream. Click here
Disconnect cable from negative battery terminal	Perform steering sensor zero point calibration	Lane departure alert system (w/ Steering Control)
		Pre-collision system
		Intelligent clearance sonar system*
		Lighting system (for Gasoline Model with Cornering Light)
	Memorize steering angle neutral point	Parking assist monitor system
	Memorize steering angle neutral point	Panoramic view monitor system

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed
*: When performing learning using the Techstream. Click here
Disconnect cable from negative auxiliary battery terminal	Perform steering sensor zero point calibration	Lane departure alert system (w/ Steering Control)
		Pre-collision system
		Intelligent clearance sonar system*
		Lighting system (for HV Model with Cornering Light)
	Memorize steering angle neutral point	Parking assist monitor system
	Memorize steering angle neutral point	Panoramic view monitor system

PROCEDURE

1. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

Click here

2. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

Click here

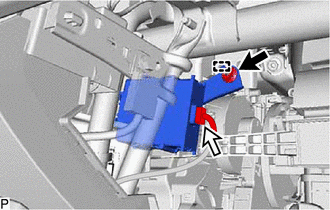

3. REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER

(a) Remove the nut.

(b) Disengage the guide.
