INSPECTION PROCEDURE 1. INSPECT FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH
| (a) Check the operation of the door lock motor. (1) Apply auxiliary battery voltage and check the operation of the door lock motor.
OK: |
Auxiliary Battery Connection |
Result | | Auxiliary battery positive (+) → Terminal 4
Auxiliary battery negative (-) → Terminal 1 |
Locks | |
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Terminal 4 |
Unlocks | If the result is not as specified, replace the front door lock with motor assembly LH. |
 |
|

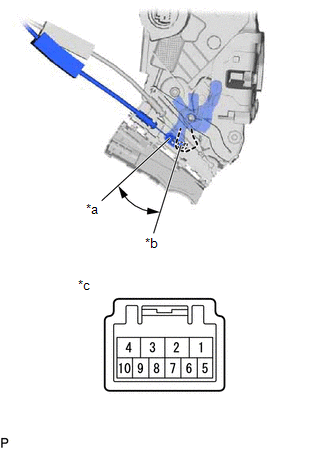

*a | Unlock | |
*b | Lock | |
*c | Component without harness connected
(Front Door Lock with Motor Assembly LH) | | |
(b) Check the operation of the door unlock detection switch. (1) Measure the resistance according to the value(s) in the table below.
Standard Resistance: |
Tester Connection | Condition |
Specified Condition | |
7 - 8 | Locked |
10 kΩ or higher | |
7 - 8 | Unlocked |
Below 1 Ω | If the result is not as specified, replace the front door lock with motor assembly LH.
| (c) Check the operation of the door key lock and unlock switch.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance: |
Tester Connection | Condition |
Specified Condition | |
9 - 7 | Held to lock side |
Below 1 Ω | |
9 - 7 | Neutral or held to unlock side |
10 kΩ or higher | |
10 - 7 | Held to unlock side |
Below 1 Ω | |
10 - 7 | Neutral or held to lock side |
10 kΩ or higher | If the result is not as specified, replace the front door lock with motor assembly LH. |
 |
|

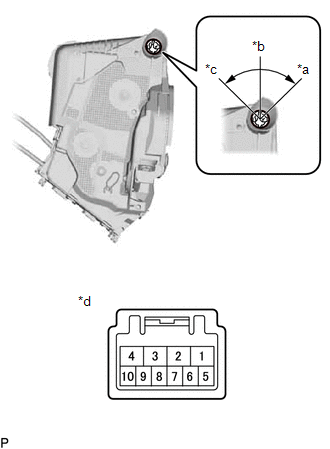

*a | Unlock | |
*b | Neutral | |
*c | Lock | |
*d | Component without harness connected
(Front Door Lock with Motor Assembly LH) | | |
2. INSPECT FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH
| (a) Check the operation of the door lock motor. (1) Apply auxiliary battery voltage and check the operation of the door lock motor.
OK: |
Auxiliary Battery Connection |
Result | | Auxiliary battery positive (+) → Terminal 4
Auxiliary battery negative (-) → Terminal 1 |
Locks | |
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Terminal 4 |
Unlocks | If the result is not as specified, replace the front door lock with motor assembly RH. |
 |
|

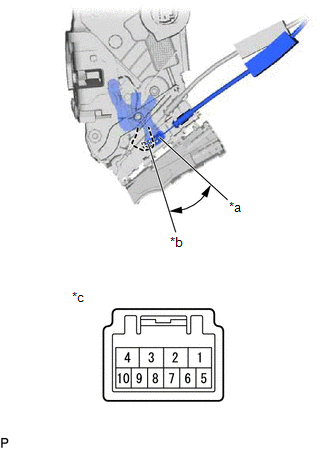

*a | Unlock | |
*b | Lock | |
*c | Component without harness connected
(Front Door Lock with Motor Assembly RH) | | |
(b) Check the operation of the door unlock detection switch. (1) Measure the resistance according to the value(s) in the table below.
Standard Resistance: |
Tester Connection | Condition |
Specified Condition | |
7 - 8 | Locked |
10 kΩ or higher | |
7 - 8 | Unlocked |
Below 1 Ω | If the result is not as specified, replace the front door lock with motor assembly RH. |
