DESCRIPTION These DTCs are
stored when the DCM (Telematics Transceiver) detects an open or a short
in the telephone and GPS antenna assembly (for Front Side) circuit. The
DCM (Telematics Transceiver) oscillates and receives 824 - 894 MHz or
1850 - 1990 MHz radio-frequency through the telephone and GPS antenna
assembly (for Front Side). |
DTC No. | Detection Item |
DTC Detection Condition | Trouble Area | |
B1536 | Short in Telephone SUB Antenna Circuit |
Telephone
and GPS antenna assembly (for Front Side) impedance is lower than
malfunction criterion for 10 seconds when engine switch is on (IG). (Short circuit) |
- DCM (Telematics Transceiver)
- Telephone and GPS antenna assembly (for Front Side)
- Telephone and GPS antenna cord (No. 4 antenna cord sub-assembly)
- Telephone and GPS antenna cord (No. 6 antenna cord sub-assembly)
| | B1537 |
Open in Telephone SUB Antenna Circuit |
Telephone
and GPS antenna assembly (for Front Side) impedance is higher than
malfunction criterion for 10 seconds when engine switch is on (IG). (Open circuit) |
- DCM (Telematics Transceiver)
- Telephone and GPS antenna assembly (for Front Side)
- Telephone and GPS antenna cord (No. 4 antenna cord sub-assembly)
- Telephone and GPS antenna cord (No. 6 antenna cord sub-assembly)

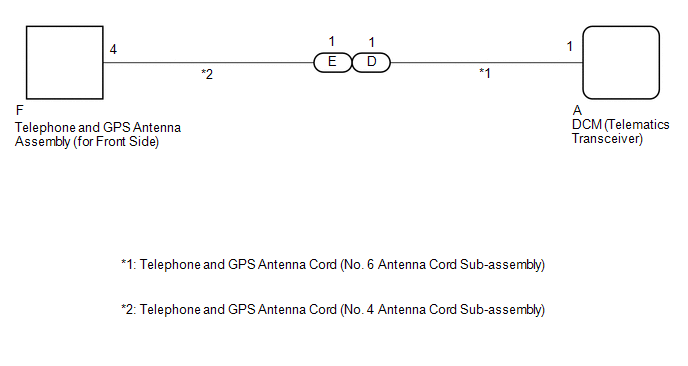

| WIRING DIAGRAM
 CAUTION / NOTICE / HINT
HINT:
- Before performing this diagnostic procedure, make sure to perform Health
Check and confirm that the DCM/VIN registration information is correct.
Click here
- Refer to "PARTS LOCATION" for the installation location of telephone and GPS antenna cord.
Click here
PROCEDURE (a) Turn the engine switch off.
(b) Connect the Techstream to the DLC3. (c) Turn the engine switch on (IG) and wait for 10 seconds.
(d) Turn the Techstream on. (e) Clear the DTCs. Body Electrical > Telematics > Clear DTCs
(f) Recheck for DTCs. Body Electrical > Telematics > Trouble Codes
|
Result | Proceed to | |
DTC B1536 or B1537 is output |
A | | DTC B1536 or B1537 is not output |
B |
| B |
 | CHECK FOR INTERMITTENT PROBLEMS |
|
A |
 | |
| 2. |
INSPECT TELEPHONE AND GPS ANTENNA ASSEMBLY (for Front Side) |

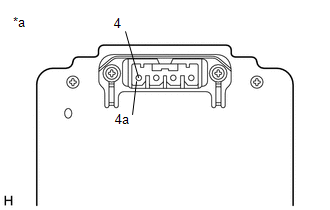

| (a) Disconnect the telephone and GPS antenna assembly (for Front Side) connector. |
 |
|
*a | Component without harness connected
(Telephone and GPS Antenna Assembly (for Front Side)) | | |
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance: |
Tester Connection | Condition |
Specified Condition | |
4 - 4a | Always |
4 to 11 kΩ |
| NG |
| REPLACE TELEPHONE AND GPS ANTENNA ASSEMBLY (for Front Side) |
|
OK | |
| |
| 3. |
INSPECT TELEPHONE AND GPS ANTENNA CORD (NO. 4 ANTENNA CORD SUB-ASSEMBLY) |

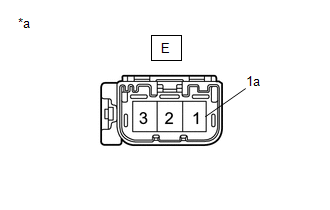

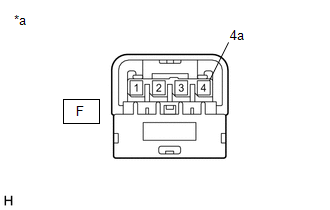

| (a) Disconnect the F telephone and GPS antenna cord (No. 4 antenna cord sub-assembly) connector. |
 |
|
*a | Component without harness connected (Telephone and GPS Antenna Cord (No. 4 Antenna Cord Sub-assembly)) | | |
| (b) Disconnect the E telephone and GPS antenna cord (No. 4 antenna cord sub-assembly) connector. |
 |
|
*a | Component without harness connected (Telephone and GPS Antenna Cord (No. 4 Antenna Cord Sub-assembly)) | | |
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance: |
Tester Connection | Condition |
Specified Condition | |
F-4 - E-3 | Always |
Below 1 Ω | |
F-4 or E-3 - Body ground |
Always | 10 kΩ or higher | |
F-4a - E-3a | Always |
Below 1 Ω | |
F-4a or E-3a - Body ground |
Always | 10 kΩ or higher |
| NG |
| REPLACE TELEPHONE AND GPS ANTENNA CORD (NO. 4 ANTENNA CORD SUB-ASSEMBLY) |
|
OK | |
| |
| 4. |
INSPECT TELEPHONE AND GPS ANTENNA CORD (NO. 6 ANTENNA CORD SUB-ASSEMBLY) |

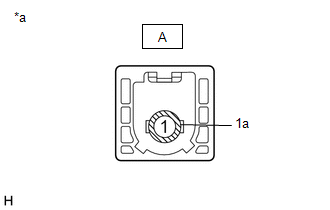

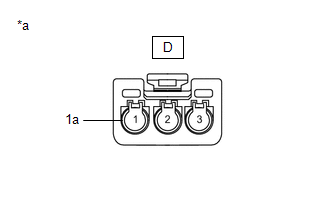

| (a) Disconnect the D telephone and GPS antenna cord (No. 6 antenna cord sub-assembly) connector. |
 |
|
*a | Component without harness connected (Telephone and GPS Antenna Cord (No. 6 Antenna Cord Sub-assembly)) | | |
| (b) Disconnect the A telephone and GPS antenna cord (No. 6 antenna cord sub-assembly) connector. |
 |
|
*a | Component without harness connected (Telephone and GPS Antenna Cord (No. 6 Antenna Cord Sub-assembly)) | | |
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance: |
Tester Connection | Condition |
Specified Condition | |
D-1 - A-1 | Always |
Below 1 Ω | |
D-1 or A-1 - Body ground |
Always | 10 kΩ or higher | |
D-1a - A-1a | Always |
Below 1 Ω | |
D-1a or A-1a - Body ground |
Always | 10 kΩ or higher |
| NG |
| REPLACE TELEPHONE AND GPS ANTENNA CORD (NO. 6 ANTENNA CORD SUB-ASSEMBLY) |
|
OK | |
| |
| 5. |
REPLACE TELEPHONE AND GPS ANTENNA ASSEMBLY (for Front Side) |
(a)
Replace the telephone and GPS antenna assembly (for Front Side) with a
known good one and check if the same problem occurs again. Click here
OK: The system returns to normal.
| OK |
| END |
|
NG | |
| |
| 6. |
REPLACE DCM (TELEMATICS TRANSCEIVER) | (a) Replace the DCM (Telematics Transceiver).
Click here
NOTICE:
- The engine switch must be off.
- Do not swap the DCM (Telematics Transceiver) with one from another vehicle.
| NEXT |
| PERFORM DCM ACTIVATION | |
