REMOVAL PROCEDURE 1. REMOVE SPARE WHEEL COVER ASSEMBLY Click here 2. REMOVE LUGGAGE COMPARTMENT INNER TRIM PAD Click here 3. REMOVE REAR SEAT HEADREST ASSEMBLY Click here 4. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY Click here 5. REMOVE REAR SEAT CUSHION ASSEMBLY Click here 6. REMOVE REAR SEAT CUSHION LOCK HOOK Click here 7. REMOVE REAR SEATBACK ASSEMBLY LH Click here 8. REMOVE REAR SEATBACK ASSEMBLY RH Click here 9. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH

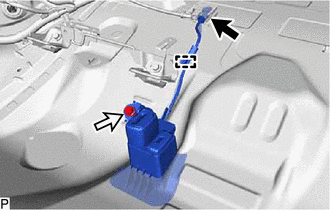

(b) Disengage the clamp. (c) Remove the bolt and rear seat inner with center belt assembly RH. HINT: The bolt cannot be removed from the rear seat inner with center belt assembly RH. |
Toyota Avalon (XX50) 2019-2022 Service & Repair Manual > Service Plug Grip: Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during service plug grip removal/installation are shown below. Necessary Procedures After Parts Removed/Install ...
