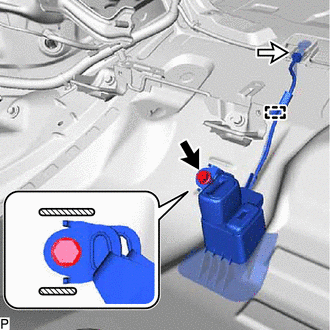

INSTALLATION PROCEDURE 1. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH (a) Install the rear seat inner with center belt assembly RH with the bolt. Torque: 42 N·m {428 kgf·cm, 31 ft·lbf} NOTICE: Do not allow the anchor part of the rear seat inner with center belt assembly RH to overlap the protruding parts of the vehicle body.
(b) Engage the clamp. (c) Connect the connector. 2. INSTALL REAR SEATBACK ASSEMBLY RH Click here 3. INSTALL REAR SEATBACK ASSEMBLY LH Click here 4. INSTALL REAR SEAT CUSHION LOCK HOOK Click here 5. INSTALL REAR SEAT CUSHION ASSEMBLY Click here 6. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY Click here 7. INSTALL REAR SEAT HEADREST ASSEMBLY Click here 8. INSTALL LUGGAGE COMPARTMENT INNER TRIM PAD Click here 9. INSTALL SPARE WHEEL COVER ASSEMBLY Click here |
