Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during No. 1 indoor electrical key antenna assembly removal/installation are shown below.

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

for Gasoline Model:

Click here

for HV Model:

Click here

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the engine switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click here

2. REMOVE LUGGAGE TRIM SERVICE HOLE COVER (for HV Model)

Click here

3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

for A25A-FXS:

Click here

for 2GR-FKS:

Click here

CAUTION:

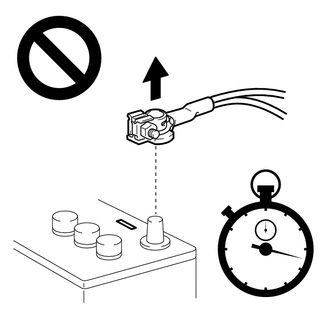

• Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

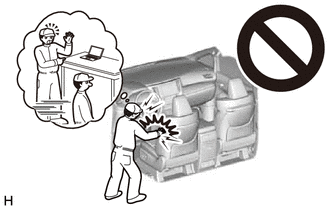

• If an airbag deploys for any reason, it may cause a serious injury.

4. REMOVE SPARE WHEEL COVER ASSEMBLY (w/ Seat Heater System)

Click here

5. REMOVE LUGGAGE COMPARTMENT INNER TRIM PAD (w/ Seat Heater System)

Click here

6. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

Click here

7. REMOVE REAR SEAT CUSHION ASSEMBLY

Click here

8. REMOVE REAR SEAT CUSHION LOCK HOOK

Click here

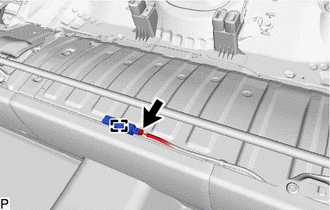

9. REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

(a) Disconnect the connector.

(b) Disengage the clamp to remove the No. 1 indoor electrical key antenna assembly.

NOTICE:

Be careful when removing the No. 1 indoor electrical key antenna assembly. If the No. 1 indoor electrical key antenna assembly is dropped, replace it with a new one.
