Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Parts Location

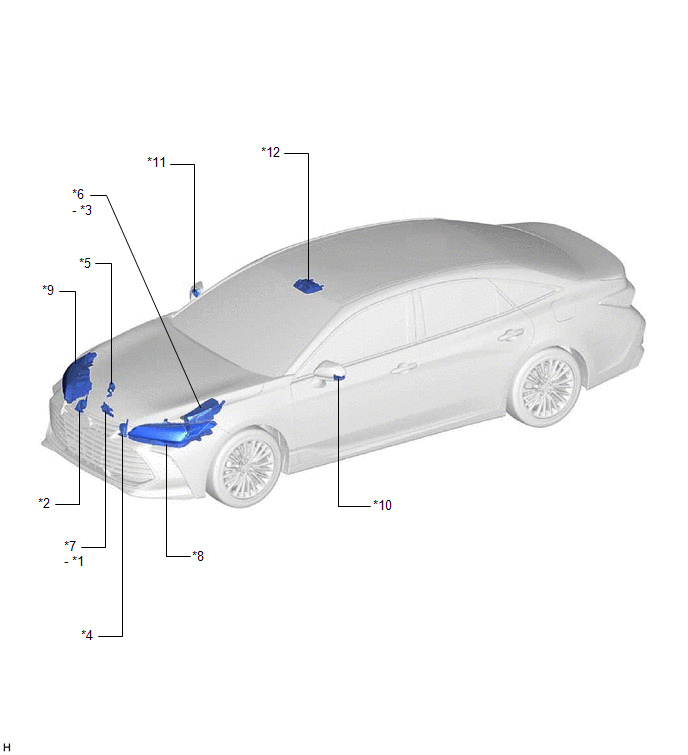

*1

ENGINE HOOD COURTESY SWITCH

*2

HIGH PITCHED HORN ASSEMBLY

*3

HORN RELAY

*4

LOW PITCHED HORN ASSEMBLY

*5

SECURITY HORN ASSEMBLY

*6

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

- HORN FUSE

*7

HOOD LOCK ASSEMBLY

*8

HEADLIGHT ASSEMBLY LH

- LOW BEAM

- TURN SIGNAL LIGHT

*9

HEADLIGHT ASSEMBLY RH

- LOW BEAM

- TURN SIGNAL LIGHT

*10

SIDE TURN SIGNAL LIGHT ASSEMBLY LH

*11

SIDE TURN SIGNAL LIGHT ASSEMBLY RH

*12

ROOF CONSOLE BOX SUB-ASSEMBLY

- INTERIOR LIGHT

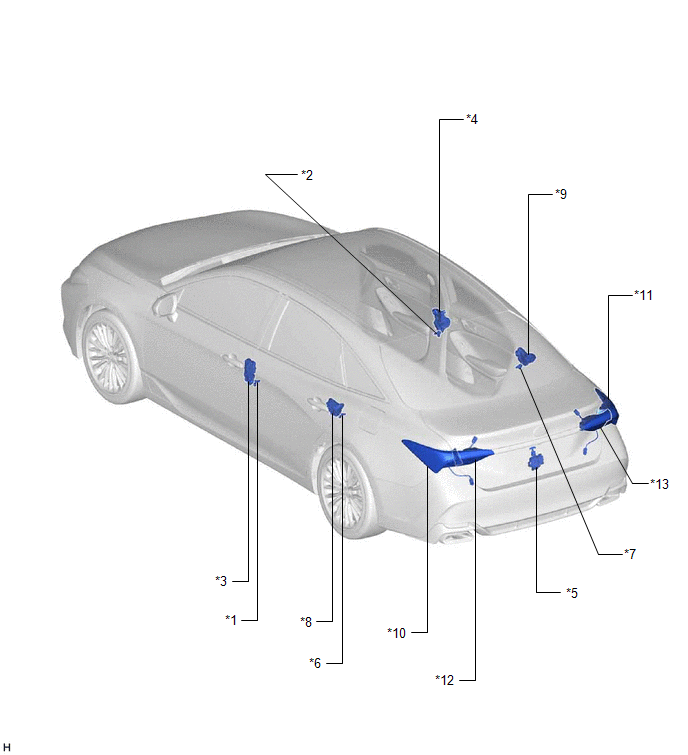

*1

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)

*2

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH)

*3

FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH

*4

FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH

*5

LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

*6

REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)

*7

REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH)

*8

REAR DOOR LOCK WITH MOTOR ASSEMBLY LH

*9

REAR DOOR LOCK WITH MOTOR ASSEMBLY RH

*10

REAR COMBINATION LIGHT ASSEMBLY LH

- TAILLIGHT

- TURN SIGNAL LIGHT

*11

REAR COMBINATION LIGHT ASSEMBLY RH

- TAILLIGHT

- TURN SIGNAL LIGHT

*12

REAR LIGHT ASSEMBLY LH

*13

REAR LIGHT ASSEMBLY RH

-

-

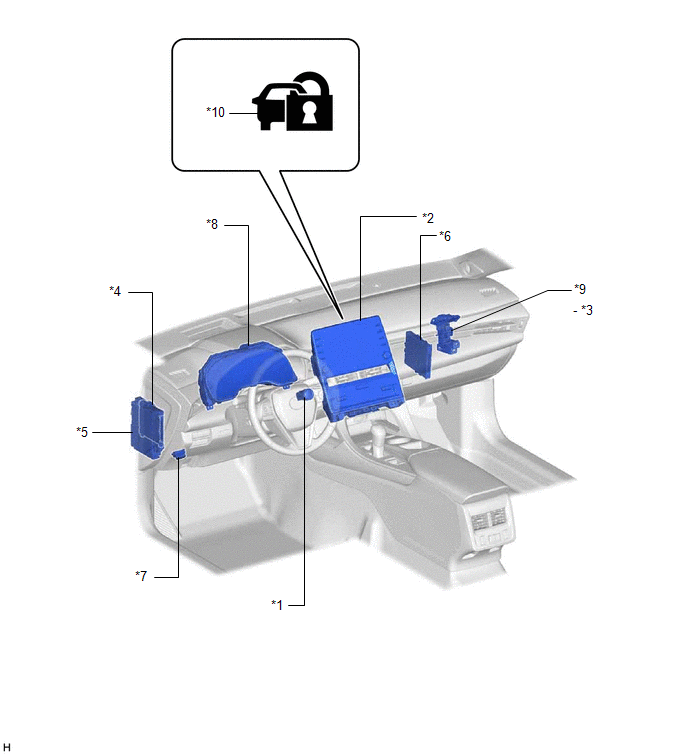

*1

ENGINE SWITCH

*2

RADIO AND DISPLAY RECEIVER ASSEMBLY

*3

S-HORN RELAY

*4

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*5

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-DCC NO. 2 FUSE

- ECU-ACC FUSE

- ECU-IG1 NO. 4 FUSE

- S-HORN FUSE

*6

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

*7

DLC3

*8

COMBINATION METER ASSEMBLY

*9

NO. 5 RELAY BLOCK

*10

SECURITY INDICATOR LIGHT
