COMPONENTS

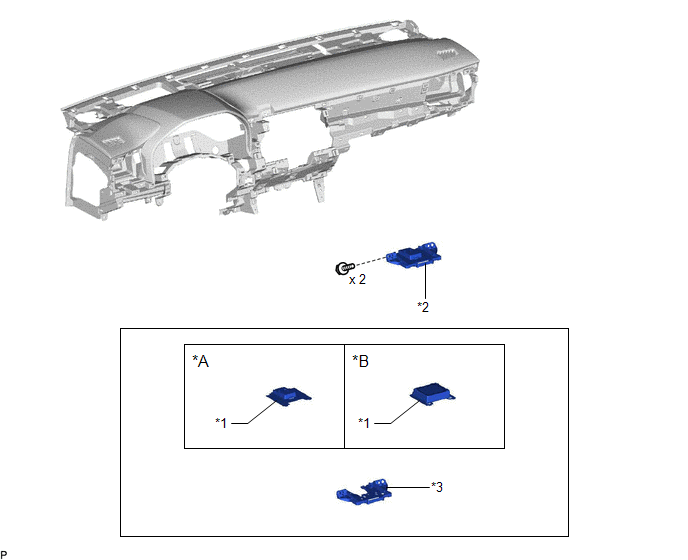

ILLUSTRATION

*A

w/o Manual (SOS) Switch

*B

w/ Manual (SOS) Switch

*1

NAVIGATION ANTENNA ASSEMBLY

*2

NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

*3

NAVIGATION ANTENNA BRACKET

-

-
    Navigation Antenna

    Inspection
