INSPECTION

PROCEDURE

1. INSPECT NAVIGATION ANTENNA ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 - 3a

Always

50 to 500 Ω

If the result is not as specified, replace the navigation antenna assembly.

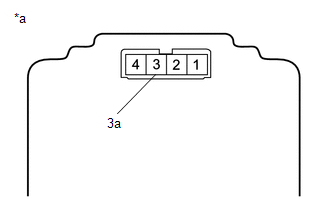

*a

Component without harness connected

(Navigation Antenna Assembly)
    Components

    Installation
