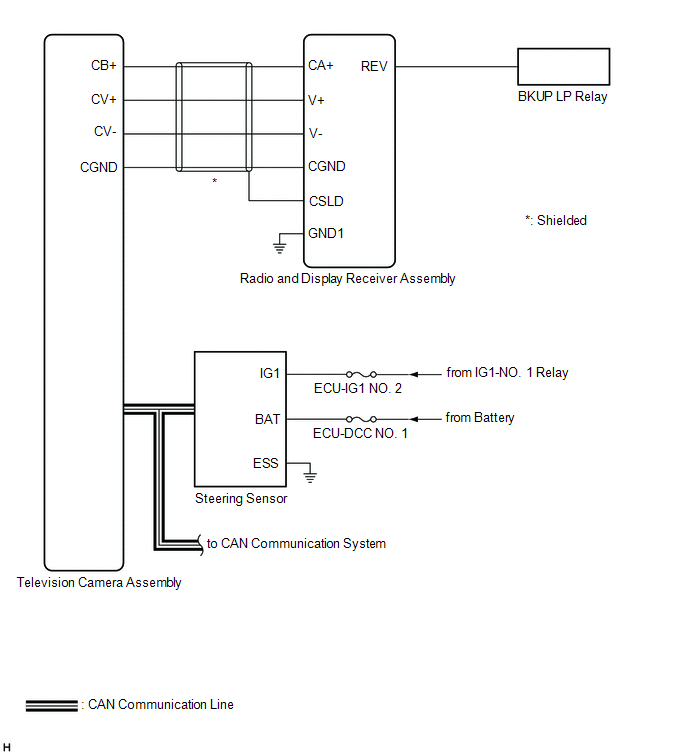

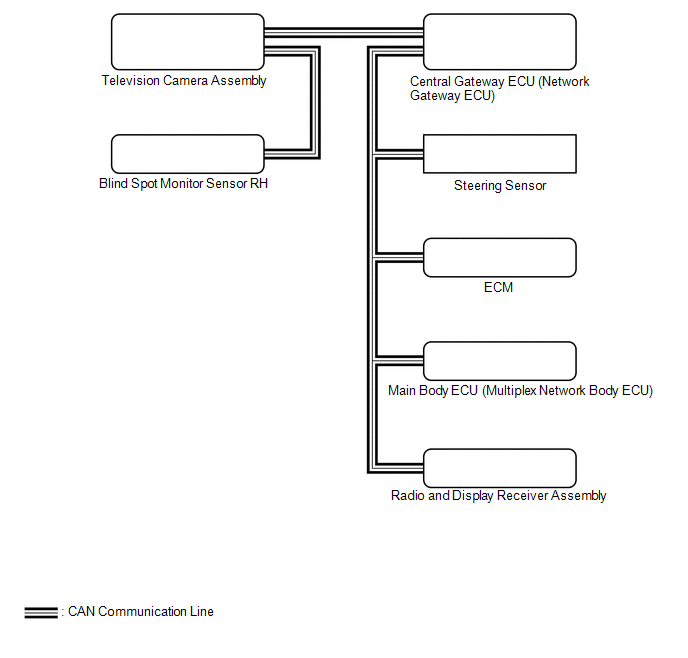

SYSTEM DIAGRAM

Communication Table

Sender	Receiver	Signal	Line
Radio and Display Receiver Assembly	Television Camera Assembly	Setting information signal	CAN
Steering Sensor	Television Camera Assembly	Steering angle signal	CAN
ECM	Television Camera Assembly	Vehicle information signal Reverse signal	CAN
Main Body ECU (Multiplex Network Body ECU)	Television Camera Assembly	Luggage compartment door courtesy switch signal Vehicle information signal	CAN
Blind Spot Monitor Sensor	Television Camera Assembly	RCTA information signal	CAN
