Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Inspection

INSPECTION

PROCEDURE

1. INSPECT KNOCK CONTROL SENSOR

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - 2	25°C (77°F)	120 to 280 kΩ

If the result is not as specified, replace the knock control sensor.

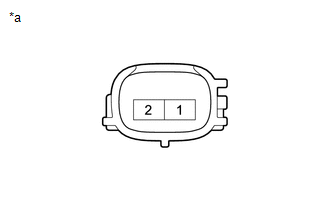

*a	Component without harness connected (Knock Control Sensor)
