REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during knock control sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link
  • Replacement of throttle body assembly
  • Cleaning the deposits from the throttle body assembly
  • Replacement of EGR valve assembly
  • Gas leak from exhaust system is repaired
  • Replacement of knock control sensor

Inspection after repair
  • Poor idle, etc.
  • Engine start function, etc.

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. REMOVE INTAKE MANIFOLD

Click here

2. REMOVE KNOCK CONTROL SENSOR

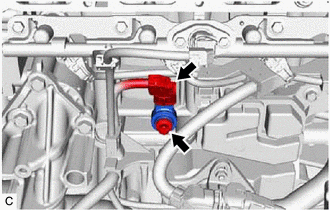

(a) Disconnect the knock control sensor connector.

(b) Remove the bolt and knock control sensor from the cylinder block sub-assembly.

NOTICE:

If the knock control sensor has been struck or dropped, replace it.
